LTM2HKD / LTM2UKD - LASERAIM MICRO MODULE KITS -  ADJUSTABLE FOCUS, DOT PROJECTING

Key Benefits

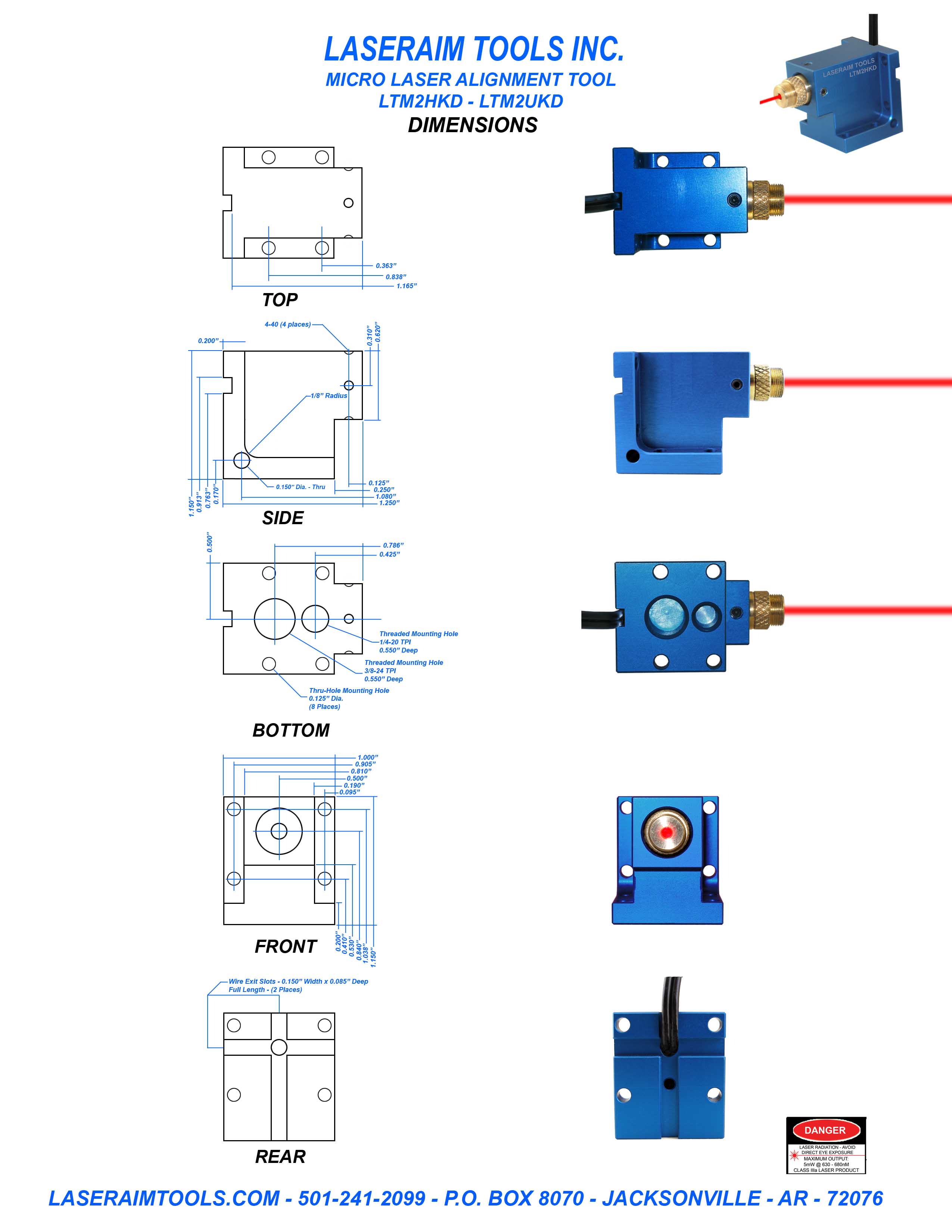

Very Small Size, only 1-1/4" L x 1" W x 1" H
"L" shaped mounting bracket mounts vertically or horizontally with four screws or bolts.  Eight 0.120" diameter thru mounting holes drilled four per side of "L" bracket.
Accepts All Accessory Optics.  Accessory Optics are interchangeable.
Solid Brass and Aluminum Construction
110 volt AC transformer with 6 ft. cord standard.  May also be wired direct to 5-12 volts DC.
High quality single lens glass optics.
Dot Rounding Optics available (works best at distances less than 50 ft.) see LTA40
Four-way adjustments for X&Y positioning.
Adjustable Focus Optics provide smaller laser dot sizes at distances less than 25 feet.
"H" version HOTDOT® - 500 Ft. Max. Range or "U" version ULTRAHOT™ - 1000 Ft. Max. Range.

Specifications

MICRO MODULE KITS - DOT PROJECTING - LTM2HKD / LTM2UKD
Power 110 Volt AC transformer with six foot power cord standard.  May also be wired to customer supplied 5-12 volt DC voltage.  Will also accept the Laseraim External Remote Battery Pack #LTA20).

*Custom wire lengths available, contact us for details.

Laser / Max. Range "H" version HOTDOT® - 500 Ft. Max. Range, Class IIIa, 650nM, <5mW max, 3.5mW typical

"U" version ULTRAHOT™ - 1000 Ft. Max. Range, Class IIIa, 635nM, <5mW max, 4.75mW typical

(Maximum Range is based on single dot projection in low ambient light conditions, use of accessory optics and brighter ambient light conditions will greatly reduce the range).

* All models available as Class II, <1mW max. upon request

Focus User Adjustable Focus provides smaller dot sizes at distances of 25 ft. or less.

Changing the focus setting affects the laser dot's X&Y position.

Smallest Obtainable Dot Sizes @ Distances

1/64" x 1/32" @ <2"

1/32" x 1/16" @ 2"-2'

1/16" x 1/8" @ 5'

3/32" x 3/16" @ 10'

1/8" x 1/4" @ 15'

7/16" x 3/8" @ 25'

5/16" x 3/4" @ 50'

1/2" x 1-1/4" @ 100'

11/16" x 1-3/4" @ 150'

Dot Size continues to increase proportionately at longer distances.

Dot Rounding Optics available (works best at distances less than 50 ft.) see LTA40

X & Y Adjustments Four-way X / Y adjustments for positioning the laser image after the unit is permanently mounted
Accessories LTA1 - Variable-Length Line Projecting Lens

LTA2 - 90 Degree Beamsplitting Lens

LTA3 - Daylight Use Reflective Target

LTA5 - Adjustable Brightness Filter

LTA6-1 - Crosshair Projecting Lens

LTA8 - Dotted Line Lens

LTA11 - Magnetic Scale

LTA12 - Fixed-Length Line Lens, 6" line per 12" distance

LTA13 - Fixed-Length Line Lens, 8" line per 12" distance

LTA14 - Fixed-Length Line Lens, 16" line per 12" distance

LTA15 - Fixed-Length Line Lens, 28" line per 12" distance

LTA40 - Dot Rounding Optics

LTA20 - Remote Battery Pack

Pricing

Description Part # Price
MICRO MODULE KIT, DOT PROJECTING, ADJUSTABLE FOCUS, 110 V. AC, HOTDOT LTM2HKD $ 219
MICRO MODULE KIT, DOT PROJECTING, ADJUSTABLE FOCUS, 110 V. AC, ULTRAHOT (2X BRIGHTER) LTM2UKD $ 369
*Ask about O.E.M. volume pricing on this product




Send mail to lasers@laseraimtools.com for ordering information, questions or comments about this web site.
Specifications subject to change without notice.
